DO-234
DO-235
DO-236
B.B. Cup Set Water Proof,
PH Type Thread : 34.8x24TPI
B.B. Cup Set of 3 Grooved Type Thread:34.8x24 TPI
B.B. Cup RL Type Set of 3 Thread :34.8x26TPI


DO-237
DO-238
DO-239
B.B. Cup Raleigh set of 3 Thread:34.8x24TPI
B.B. Cup French Type Set of 3
Thread: M35x1.0mm Pitch RHT.
B.B. Cup Hex French Set of 3 Thread : 35mmx1mm Pitch RHT.

DO-240

DO-241

DO-242
B.B. Cup Set of 3 Italian
Type Thread : 36x24 TPI
B.B. Cup PH Type Set of 3RT & RT/RT & LT Thread :
  Size
A
B
C
D
* DO2C
2C
37
54
46
137
*DOA8
A-B
35
62
45
142
*DOY16
Y-16
36
57
46
139
*DOSLR
SLR
36
55
47
138
*DOM1
M-1
48
52
53
153
*DOMX
MEXICAN
45
55
45
145
*DOMIN
MINI
51
56
50
157
*DOMTB
MTB
50
54
47
151
*DOBMX
BMX
47
58
45
150
*DOFR1
FRENCH
35
58
44
137
*DOFR2
FRENCH
37
56
44
137

DO-243
DO-244
B.B. Set complete (Set of 6)
with Ball Retainers 1/4x9 Balls
Ball Retainer for B.B. Cups
1:1/4"x9 Balls (For Standard B.B. Cup)
2: 5/16"x9 Balls (For 50mm B.B. Cup)
3: 1/4"x11 Balls (For 45mm B.B. Cup)
DO-245
B.B. Axle Thomson Set of 10 (cottered) Collar Type 40mm, 1/4"x9Balls Retainers. Axle Length 150mm
DO-246
B.B. Axle Thomson Set of 9 (Cottered) 35mm, 3/16"x10 Balls. Grooved Axle, length-150mm.





DO-247
DO-248

B.B. CUP COMPLETE (SET OF 8) 45mm BALL RETAINERS 1/4"X11 BALLS OPTIONAL
A. B.B. Cup (Set of 2) 45mm ZP
B. B.B. Cone (Set of 2) Left 7/8"x24 TPI
C. B.B. Cap (Set of 2) ZP
D. Lock Washer ZP
E. Check Nut 7/8"x24 TPI ZP

B.B. CUP SET COMPLETE (SET OF 7) 50mm BALL RETAINERS 5/16"x9 BALLS OPTIONAL
A. B.B. CUP (Set of 2) 50mm ZP
B. B.B. Cone (Set of 2) Left 7/8"x24 TPI, Right 15/16"x24TPI ZP
C. Lock Washer ZP
D. Washer ZP
E. Check Nut 7/8"x24 TPI ZP
DO-249
  Size
A
B
C
D
*DO3U
3C
35
52
40.5
127.5
*DO3S
3S
32
52
37.5
121.5
*DO3T
3T
35
52
39
126
*DO5U
5U
35
54
40.5
129.5
*DO5S
5S
35
54
37.5
126.5
*DO5T
5T
35
54
39
128
*DO6S
6S
35
56
37.5
128.5
*DO7S
7S
35
57
37.5
129.5
*DO7T
7T
35
57
39
131
*DO7U
7U
35
57
40.5
132.5
*DO7R
7R
35
57
42
134

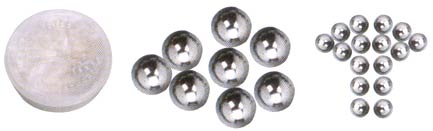

Carbon Steel / Chrome Steel Balls
A. 3.17mm (1/8") - Fork Fitting PH Type and Freewheel
B. 3.97 (5/32") - Fork Fitting RL Type & Pedal
C. 4.76mm (3/16") - Front Hub Barrel
D. 5.55mm (7/32") -B.B Fitting
E. 6.35mm (1/4") -Front & Rear Hubs PH Type and B.B. Fitting
DO-250

DO-251

DO-252

DO-253
B.B. Cartridge, B.B. Axle Bolt
Type Thread:34.8mm x 24
TPI, 36mm x 24 w/w
B.B. Axle Cottered
for Kids Bicycle Length to order.
New Design threaded Axle
for 45mm/50mm OPC fitting
cotterless / cottered to order.
